Products

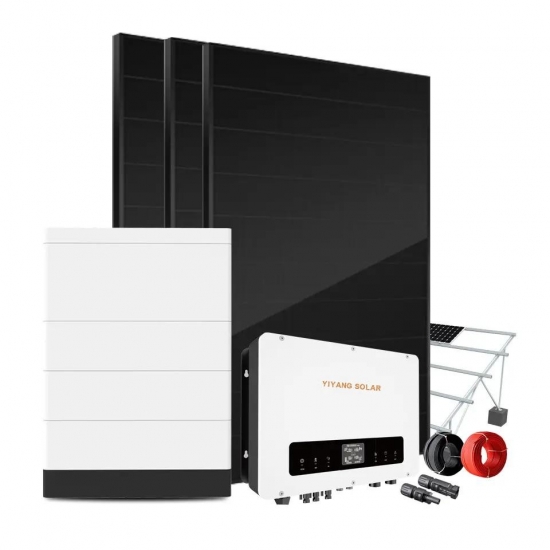

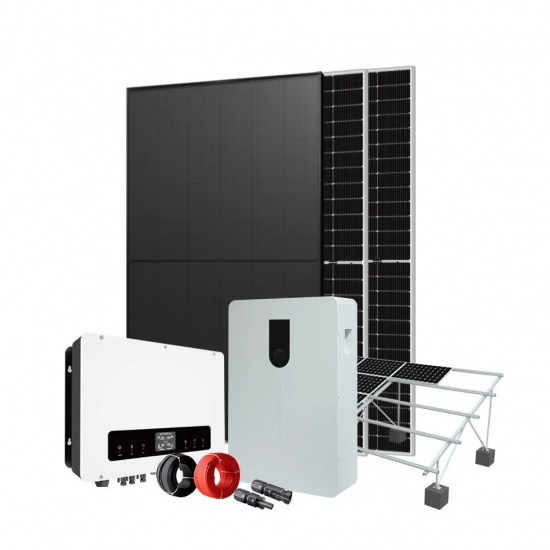

Solar off-grid system

Item NO.:
10KW
Order(MOQ):
1
Market Price:
$5500
Price:
$5300
Product Origin:
GUANGZHOU
Color:
WHITE
Shipping Port:
GUANGZHOU
Lead Time：
14

Inquiry now

Product Detail

Key attributes

Industry-specific attributes

Solar Panel Type

Monocrystalline Silicon

Controller Type

MPPT

Other attributes

Free installation service

Place of Origin

GUANGZHOU, China

Load Power (W)

20kw, 10KW, Others

Pre-sales project design

Brand Name

YIYANG

Model Number

JH-V9-OFF

Application

Home

Battery Type

Lithium Ion

Mounting Type

Ground /Roof Mounting

Output Voltage (V)

110V/120V/220V/230V/240V

Output Frequency

50/60HZ

Work Time (h)

24Hours

Product name

Off-Grid Solar System

Type

Solar Home Energy Power System

Solar panel

Mono Solar Panel

Battery

LiFePO4 Lithium Battery

Inverter

Pure Sine Wave Inverter

Controller

MPPT Solar Charge Controller

Mounting Structure

Ground /Roof Mounting

Function

Provide Power

Protection

Overloads

PV Cable

4mm2/6mm2Product Description

Product Paramenters

System Typle	JH-5KW-OFF	JH-8KW-OFF	JH-10KW-OFF
PV System Size Nominal (kWp)	5.28kw	8.8kw	10.56kw
PV Module Specifications (half cell mono)
Power (W)	440w
Vmp (V)	32V
Dimensions (L x W x H) (mm)	1723113435mm
Number of PV Modules	12	20	24
Certification	IEC 61215,IEC 61730,UL 61730 ISO9001: 2015:ISO TUV/CE/CB/CQC
Inverter Specifications
Inverter Size (kW)	5kw	8kw	10kw
Max DC Power (W)	7500w	12000w	15000w
Max DC Voltage (V)	1000Vd.c.
MPPT Voltage Range(V)	150---850Vd.c.
Norminal Output Voltage	230/400V
Certificates and Approvals	NRS97,G98/G99,EN50549-1,C10/C11,AS 4777,VDE-AR-N4105,VDE0126,EC62040, 1EC62109-1,IEC62109-2
Dimension(W/H/D)	588426250mm
Degree of protection	IP65
Battery Bank Specifications
Battery Type	Lithium-iron phosphate (LiFePO4)
Battery Bank Power(kWh)	10.24kwh	17.92kwh	20.48kwh
Operating Voltage Range	172.8V--224.64V	302.4V--393.12V	345.6V--449.28V
Recommend charge current	10~25A
Life cycle	6000 times @80%DOD
Remark: Please contact customer service for specific system parameters.

System Typle	JH-12KW-OFF	JH-15KW-OFF	JH-20KW-OFF
PV System Size Nominal (kWp)	12.32kw	15.84kw	20.24kw
PV Module Specifications (half cell mono)
Power (W)	440w
Vmp (V)	32V
Dimensions (L x W x H) (mm)	1723113435mm
Number of PV Modules	28	36	46
Certification	IEC 61215,IEC 61730,UL 61730 ISO9001: 2015:ISO TUV/CE/CB/CQC
Inverter Specifications
Inverter Size (kW)	12kw	15kw	20kw
Max DC Power (W)	18000w	22500w	30000w
Max DC Voltage (V)	1000Vd.c.
MPPT Voltage Range(V)	150---850Vd.c.
Norminal Output Voltage	230/400V
Certificates and Approvals	NRS97,G98/G99,EN50549-1,C10/C11,AS 4777,VDE-AR-N4105,VDE0126,EC62040, 1EC62109-1,IEC62109-2
Dimension(W/H/D)	588426250mm
Degree of protection	IP65
Battery Bank Specifications
Battery Type	Lithium-iron phosphate (LiFePO4)
Battery Bank Power(kWh)	25.6kwh	30.72kwh	------
Operating Voltage Range	432V--561.6V	259.2V--350.4V	--------
Recommend charge current	10~25A
Life cycle	6000 times @80%DOD
Remark: Please contact customer service for specific system parameters.

Product Details

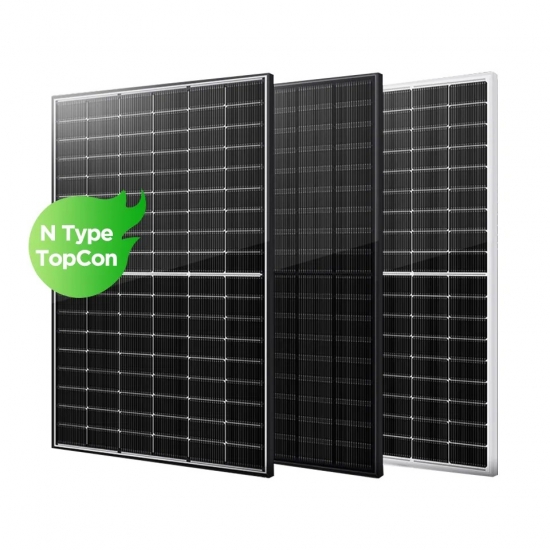

Solar Panels

> 30 years Warranty

> Highest conversion efficiency of 22.52%
> Anti-reflective and anti-soiling surface power, loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

PV Combiner Box

>DC 1000V
>Lightening Arrester
>DC Breaker, Fuse, SPD inside
>IP65 Protection Grade

Hybrid Solar Inverter

>All in one hybrid inverter

>Seamless on/off grid transfer
>Programmable working mode
>Supports remote control of DG
>Doubled capacity by paralleling 2 units

Household Energy Storage

> Deep cycle long lifespan

> High discharge performance
>Easy installation and Maintenance-free
> Agm/Gel/LiFePO4/Lithium Ion Battery Type
>12V/48V/51.2V High Voltage Battery
> More than 6000 times, up to 90% DOD
> Wide suitability of ambient temperature range

Mounting Structure

>Ground Solar Mounting system >Residential Roof(Pitched Roof)
>Car parking solar mounting system >Vertical wall solar mounting system
>Commercial Roof(Flat roof & workshop roof)
>All aluminum structure solar mounting system

PV Cable&MC4 Connector

>MC4 Connector
>PV Cable&MC4 Connector;
>4mm2,6mm2,10mm2,16mm2, 25mm2, 35mm2
>Colors: Black For STD, Red Optional.
>Lifetime: 25 Years
